    銅管端子

    當前位置：首頁 - 產品展示 - 銅管端子

  • 窺口接線端頭 CSC
    • 發布時間：2019-03-14 瀏覽次數：63次 作者：023web

    窺口接線端頭 CSC

    冷壓端子,冷壓端頭,銅管端子

    產品材質:接線端子采用優質紫銅制成,導電性良好
    產品特點:采用優質亞光電鍍,防銹時間大大加長,無鋒利部位；配套華展端子鉗即可壓緊電線,接線美觀,
    國際認證:歐盟RoHS環保認證,歐洲CE認證.
    產品特性:品質優良,壓緊后不斷裂松開,-40度耐熱至150度正常使用.
    使用方法:將電線剝開外皮,穿入端子后銅管

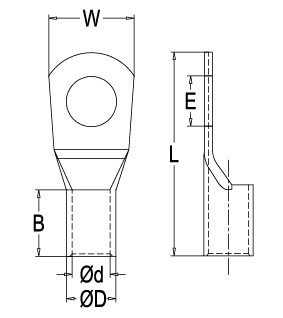

    產品規格


    型號
    Item No.

    尺寸 DIMENSION

    E

    		ΦDΦdWBL
    CSC1.5-44.23.31.88.05.016.0
    CSC1.5-55.23.31.810.05.017.0
    CSC1.5-66.53.31.810.05.018.0
    CSC2.5-44.23.62.48.07.018.0
    CSC2.5-55.23.62.410.07.020.0
    CSC2.5-66.53.62.410.07.020.0
    CSC2.5-88.43.62.412.57.023.0
    CSC4-44.24.43.110.07.020.0
    CSC4-55.24.43.110.07.020.0
    CSC4-66.54.43.110.07.020.0
    CSC4-88.44.43.112.57.023.0
    CSC6-44.25.13.810.09.023.0
    CSC6-55.25.13.810.09.024.0
    CSC6-66.55.13.812.09.024.0
    CSC6-88.45.13.812.59.026.0
    CSC6-1010.55.94.015.09.028.0
    CSC10-55.25.84.512.09.025.0
    CSC10-66.55.84.512.09.025.0
    CSC10-88.45.84.512.59.027.0
    CSC10-1010.55.84.515.09.029.0
    CSC10-1213.05.84.517.09.031.0
    CSC16-55.26.65.412.012.030.0
    CSC16-66.56.65.412.012.030.0
    CSC16-88.46.65.412.512.030.0
    CSC16-1010.56.65.416.012.033.0
    CSC16-1213.06.65.417.012.035.0
    CSC25-55.28.36.813.012.033.0
    CSC25-66.58.36.813.012.033.0
    CSC25-88.48.36.815.012.033.0
    CSC25-1010.58.36.818.012.034.0
    CSC25-1213.08.36.818.012.035.0
    CSC25-1415.08.36.820.012.038.0
    CSC35-55.210.08.216.014.038.0
    CSC35-66.510.08.216.014.038.0
    CSC35-88.410.08.216.014.038.0
    CSC35-1010.510.08.218.014.039.0
    CSC35-1213.011.68.219.014.040.5
    CSC35-1415.011.68.220.014.042.0
    CSC50-66.511.69.517.816.045.0
    CSC50-88.411.69.517.816.045.0
    CSC50-1010.511.69.517.816.045.0
    CSC50-1213.011.69.520.016.045.0
    CSC50-1415.011.69.522.016.046.0
    CSC50-1617.011.69.524.016.047.0
    CSC70-88.413.811.220.420.052.0
    CSC70-1010.513.811.220.420.052.0
    CSC70-1213.013.811.220.420.052.0
    CSC70-1415.013.811.220.420.052.0
    CSC70-1617.013.811.225.020.053.0
    CSC95-88.416.413.524.023.058.0
    CSC95-1010.516.413.524.023.058.0
    CSC95-1213.016.413.524.023.058.0
    CSC95-1415.016.413.524.023.058.0
    CSC95-1617.016.413.524.023.058.0
    CSC120-88.418.215.027.022.063.0
    CSC120-1010.518.215.027.022.063.0
    CSC120-1213.018.215.027.022.063.0
    CSC120-1415.018.215.027.022.063.0
    CSC120-1617.018.215.027.022.063.0
    CSC120-2021.018.215.027.022.063.0
    CSC150-88.419.916.529.526.070.0
    CSC150-1010.519.916.529.526.070.0
    CSC150-1213.019.916.529.526.070.0
    CSC150-1415.019.916.529.526.070.0
    CSC150-1617.019.916.529.526.070.0
    CSC150-2021.019.916.529.526.070.0
    CSC185-1010.522.118.532.532.075.0
    CSC185-1213.022.118.532.532.075.0
    CSC185-1415.022.118.532.532.075.0
    CSC185-1617.022.118.532.532.075.0
    CSC185-2021.022.118.532.532.075.0
    CSC240-1010.525.521.037.038.090.0
    CSC240-1213.025.021.037.038.090.0
    CSC240-1415.025.021.037.038.090.0
    CSC240-1617.025.021.037.038.090.0
    CSC240-2021.025.021.037.038.090.0
    CSC300-1010.528.223.541.542.098.0
    CSC300-1213.028.223.541.542.098.0
    CSC300-1415.028.223.541.542.098.0
    CSC300-1617.028.223.543.042.098.0
    CSC300-2021.028.223.543.042.098.0
    CSC400-1010.534.328.550.544.0110.0
    CSC400-1213.034.328.550.544.0110.0
    CSC400-1415.034.328.550.544.0110.0
    CSC400-1617.034.328.550.544.0110.0
    CSC400-2021.034.328.550.544.0110.0
    CSC500-1010.536.530.053.548.0120.0
    CSC500-1213.036.530.053.548.0120.0
    CSC500-1415.036.530.053.548.0120.0
    CSC500-1617.036.530.053.548.0120.0
    CSC500-2021.036.530.053.548.0120.0
    CSC630-1010.542.235.062.556.0140.0
    CSC630-1213.042.235.062.556.0140.0
    CSC630-1415.042.235.062.556.0140.0
    CSC630-1617.042.235.062.556.0140.0
    CSC630-2021.042.235.062.556.0140.0
