導線截面：0.5～1.5mm2(AWG22～16 ) 最大電流：1max＝19A
Size of cable: 0.5-1.5mm2(AWG 22-16) Max.Current=19A

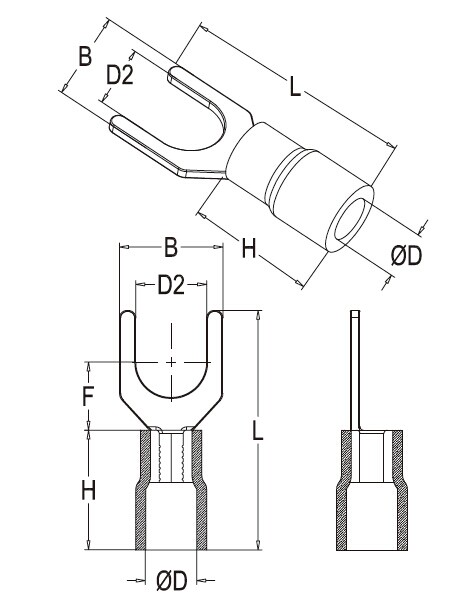

型號 ITEM NO | 尺寸 DIMENSION | 顏色 color | ||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | ||
| D2(mm) | mm | mm | mm | mm | mm | |||
| YF1.25－3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | 紅 red |
| YFS1.25－3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| YFL1.25－3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| YFS1.25－4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| YFM1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| YFL1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| YFS1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| YFL1.25-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| YFS1.25-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| YFL1.25-6 | 1/4 | 6.5mm | 12.0 | 27.2 | 11.0 | |||
導線截面：1.5～2.5mm2(AWG16～14) 最大電流：lmax＝27A
Size of cable: 1.5-2.5mm2(AWG 16-14) Max.Current=27A
型號 | 尺寸 | 顏色 | ||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | ||
| D2(mm) | mm | mm | mm | mm | mm | |||
| YF2-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 |
藍 |
| YFS2-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| YFL2-3.5 | #6 | 3.7mm | 6.0 | 21.2 | 6.5 | |||
| YFS2-4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| YFM2-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| YFL2-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| YFS2-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| YFL2-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| YFS2-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| YFL2-6 | 1/4 | 6.5mm | 12.0 | 27.2 | 11.0 | |||
導線截面：2.5～4mm2(AWG14～12) 最大電流：lmax＝37A
Size of cable: 2.5-4mm2(AWG 14-12) Max.Current=37A
型號 | 尺寸 | 顏色 | ||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | ||
| D2(mm) | mm | mm | mm | mm | mm | |||
| YF3.5-3 | #4 | 3.2mm | 5.7 | 24.8 | 7.0 | 13.5 | 6.2 | 黑 black |
| YF3.5-4 | #8 | 4.3mm | 8.0 | 24.8 | 7.0 | |||
| YF3.5-5 | #10 | 5.3mm | 8.0 | 24.8 | 7.0 | |||
| YF3.5-6 | 1/4 | 6.5mm | 12.0 | 28.0 | 12.1 | |||
導線截面：4～6mm2(AWG12～10) 最大電流：lmax=48A
Size of cable: 4-6mm2(AWG 12-10) Max.Current=48A
型號 | 尺寸 | 顏色 | ||||||
| 美制螺栓號 | 螺栓口直徑 | B | L | F | H | φD | ||
| D2(mm) | mm | mm | mm | mm | mm | |||
| YF 5.5－3.5 | #6 | 3.7mm | 8.3 | 25.2 | 7.5 | 13.5 | 6.7 | 黃 yellow |
| YFS 5.5－4 | #8 | 4.3mm | 8.3 | 25.2 | 7.5 | |||
| YFL 5.5－4 | #8 | 4.3mm | 9.0 | 23.9 | 7.5 | |||
| YF 5.5－5 | #10 | 5.3mm | 9.0 | 23.9 | 7.5 | |||
| YFS 5.5－6 | 1/4 | 6.5mm | 9.0 | 23.9 | 7.5 | |||
| YFL 5.5－6 | 1/4 | 6.5mm | 12.0 | 31.2 | 12.0 | |||
| YF5.5－8 | 5/16 | 8.4mm | 14.0 | 30.0 | 11.5 | |||
